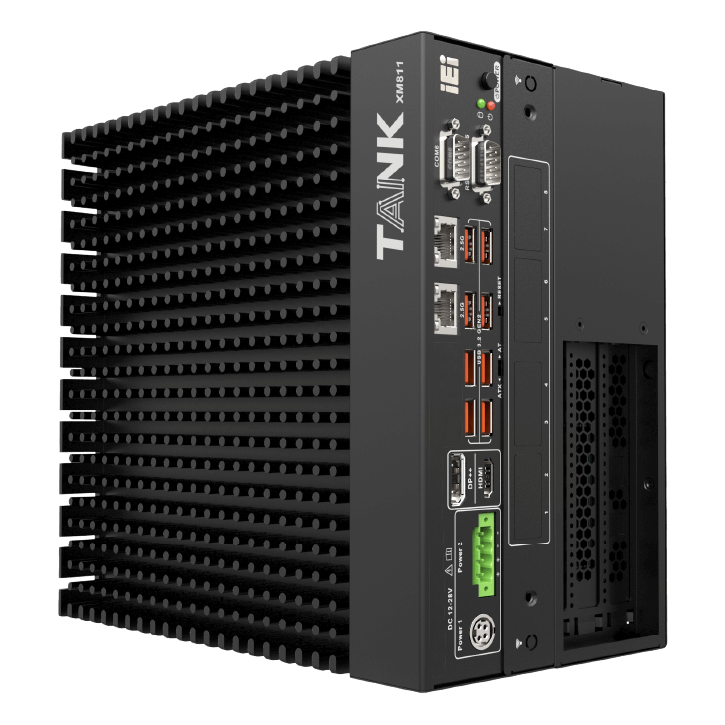

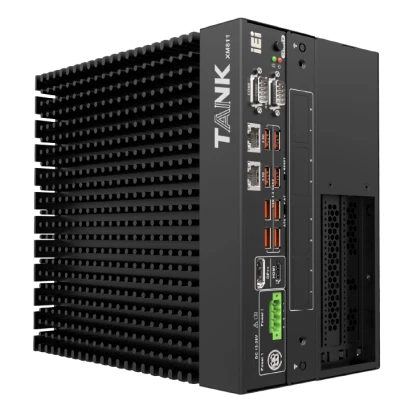

TANK-XM811AI-i5AD/2A

Rugged Embedded System, Intel 12th Gen Core i5-12500TE 1.9GHz CPU, Intel R680E, 16GB DDR4 RAM (Up to 64GB), 256GB 2.5" SSD, HDMI/DP++, 2x2.5GbE LAN, 6xCOM, 12-bit DIO, 8xUSB 3.2, 1xM.2 2280, 1xM.2 2230, 2xPCIe x8, 12-28VDC-in with 180W PSU, -20..60C

Preis auf Anfrage ()
Stk.
Bestellen
Zu den Favoriten hinzufügen Aus den Favoriten entfernen
Auf die Vergleichs Vergleichen
Hersteller:
IEI
Gehäuse:
Aluminiumgehäuse
Einbaumöglichkeit:
Wall
Unterstützte Prozessoren:
Intel Core i5
Typ:
Aktiver Lüfter
Betriebssystemkompatibilität:
Linux OS, Windows IoT Enterprise 10, Windows 11
Temperatur:
-20 ... 60 °C
Spezifikationen
Aufbau
Gehäuse:
Aluminiumgehäuse
Einbaumöglichkeit:
Wall
CPU
CPU Generation/Familie:
Alder Lake
Unterstützte Prozessoren:
Intel Core i5 (Intel Core i5-12500TE (6-core, 35W TDP))
Socket:
LGA1700
Frequenz:
1.9 GHz (Up to 4.3GHz)
Chipsatz
Chipsatz:
Intel R680E
Speicher
Speichertyp:
DDR4 RAM
Socket Typ:
2xSODIMM 260-pin
Standard Onboard Speicher:
16 GB
Bauweise:
herausnehmbar
Maximum Speicher:
64 GB
ECC:
No (Optional support ECC SKU)
Grafik
Grafikcontroller:
integriert im Prozessor, Intel UHD Graphics (Support High-performance Graphics Card)
Netzwerk Adapter
Controller Typ:
Intel i225LM, Intel I225V
Ethernet gesamt:
2
2,5 Gbit/s:
2
Typ 2,5 Gbit/s:
RJ-45
WLAN IEEE-Norm:
Yes (Optional through M.2 2230 A-Key)
Schnittstellen Seriell / Parallel
COM gesamt:
6
RS-232:
4
RS-232/422/485:
2
USB gesamt:
8
USB 3.2:
8 (Gen 2 (10Gb/s), Type-A)
Digital Eingang / Ausgang
Gesamtanzahl:
12
Eingang:
6
Ausgang:
6
Speicher Controller
SATA 3 Channels:
1
Speichermedium
2.5'' Einbauschacht:
SSD (256GB SSD pre-installed)
Laufwerksschächte
2.5" intern:
1
Steckplätze
Gesamtanzahl:
2
PCI Express x8:
2 (Up to 75W, Support FHHL card)
M.2:
2 (1x2280 M-key, 1x2230 A-key)
Watchdog
Programmierbar:
Yes
Reaktionszeit:
1..255
Kühlung
Typ:
Aktiver Lüfter
Schnittstellen
Schnittstellen:
6xDB9, HDMI, 2xRJ45, 8xUSB, DC input (terminal block), DB15 GPIO, 4-pin DC input (1xDP++)
Systemleistung
Eingangsspannung DC:
12 ... 28 V
Netzteil
Art der Spannungsversorgung:
External power adapter AC/DC
Ausgangsleistung:
180 W
Software
Betriebssystemkompatibilität:
Linux OS, Windows IoT Enterprise 10, Windows 11
Maße und Gewicht
Breite:
137.9 mm
Höhe:
230.6 mm
Tiefe:
255.4 mm
Betriebsbedingungen
Temperatur:
-20 ... 60 °C
Feuchtigkeit:
10 ... 95 % ( non-condensing)
Vibration:
MIL-STD-810G 514.6C-1 (with SSD)
Schock:
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Normen und Zertifikate
Zertifizierungen:
CE, FCC
MIL-STD-810:
MIL-STD-810G Test Method 514.6 Vibration (MIL-STD-810G 514.6C-1 (with SSD))
Hersteller
Name:
IEI
Dokumentation

Größe

Gewicht

Bruttogewicht: 5.6 kg
Nettogewicht: 4.6 kg
