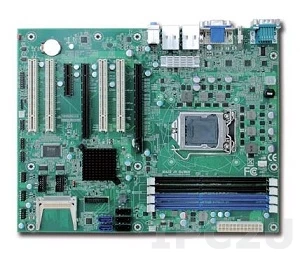

RUBY-D714VG2AR

ATX Intel Q77 Core i5/ i7 CPU Card with HDMI/DVI-D/VGA, 2xGigabit Ethernet, Audio, 6xCOM, SATA RAID 0/1/5/10

Nicht verfügbar
Hersteller:
Portwell
Formfaktor:
ATX
Unterstützte Prozessoren:
Intel Core i5, Intel Core i7
Socket:
LGA1155
Chipsatz:
Intel Q77
Speichertyp:
DDR3 1333, DDR3 1600
Ethernet gesamt:
2
COM gesamt:
6
USB gesamt:
10
Spezifikationen
Hersteller
Name:
Portwell
Systemarchitektur
Formfaktor:
ATX
CPU
Unterstützte Prozessoren:
Intel Core i5, Intel Core i7
Socket:
LGA1155
Chipsatz
Chipsatz:
Intel Q77 (PCH)
Speicher
Speichertyp:
DDR3 1333, DDR3 1600
Socket Typ:
4xDDR3 DIMM 240pin
Maximum Speicher:
32 GB
Grafik
Grafikcontroller:
integriert im Prozessor
Schnitstellen:
DVI-D, HDMI, VGA
Netzwerk Adapter
Controller Typ:
Intel 82579LM 10/100/1000Mbps, Intel 82583V 10/100/1000 Mbps
Ethernet gesamt:
2
10/100/1000 Mbit/s:
2
Schnittstellen Seriell / Parallel
COM gesamt:
6
RS-232:
5
RS-232/422/485:
1
USB gesamt:
10
USB 2.0:
6
USB 3.0:
4
Digital Eingang / Ausgang
GPIO:
Yes
Steckplätze
Gesamtanzahl:
7
PCI Express x4:
1
PCI Express x4 Typ:
1xPCI Express x1
PCI Express x16:
2
PCI Express x16 Typ:
1xPCI Express x4, 1xPCI Express x16
PCI:
4
Speicher Controller
SATA 2 Channels:
3
RAID SATA 2:
0, 1, 5, 10
SATA 3 Channels:
2
RAID SATA 3:
0, 1, 5, 10
Speichermedium
CF Socket:
Yes
Audio
Audio Controller:
Realtek ALC886-GR
Watchdog
Programmierbar:
Yes
Reaktionszeit:
0.5 sec. ~ 255 min.
Software
Betriebssystemkompatibilität:
Windows XP Embedded, Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 2009, Windows Embedded Standard 8, Windows 10
Schnittstellen
Intern:
TPM, 24-pin ATX, 6x4-pin USB 2.0, 5xSATA, GPIO, CF-SATA
Schnittstellen:
2xDB9, DVI-D, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Audio
enthaltene Kabel:
SATA III Cable
Betriebsbedingungen
Temperatur:
0 ... 60 °C
Feuchtigkeit:
5 ... 95 % (Non-condensing)
Maße und Gewicht
Breite:
243.8 mm
Länge:
304.8 mm
Dokumentation
RUBY-D714 (PDF)

Größe

Gewicht

Bruttogewicht: 1.07 kg
